ANTILEAK 801 Flexible Graphite Sheet
Descriptions:

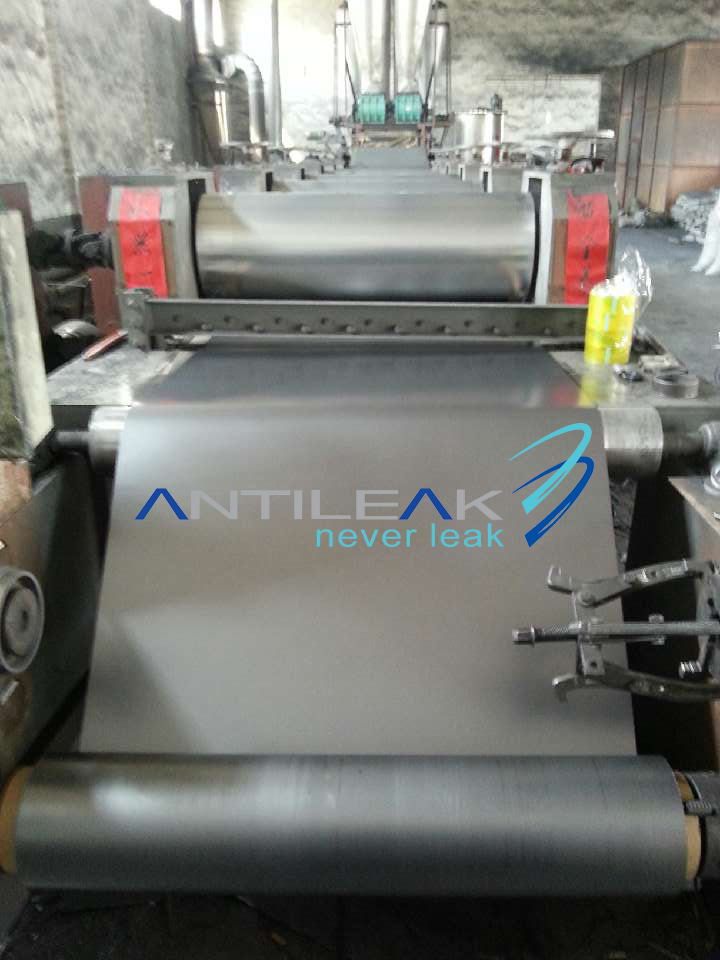

Flexible Graphite Sheet is made of high carbon flake graphite through chemical treatment, high temperature expansion, and then pressed into the roll.Theworking temperature of Flexible Graphite Sheet is -200 ~ 650℃in air, and -200 ~ 3000℃in the non-oxidizing medium.
Features:
High temperature resistant
Corrosion-resistant
Flexible
Applications:
Flexible Graphite Sheet is the basic material for manufacturing all kinds of reinforced graphite sheet, graphite tapes, graphite packing rings, graphite gaskets, etc…
Available dimensions:
Thickness (mm) | Width (mm) | Length (meter) | Density (g/cm³) | |
Roll | Sheet | 100-1030 | 1-500 | 0.7-1.5 |
0.15-1.2 | 0.2-3.0 | |||
Technical Data:
Item | Grade A | Grade B | Grade C | Grade D |
Carbon content (%) | 99 | 99 | 99 | 98 |
Sulphur content (PPM) | ≤500 | ≤1000 | ≤1300 | ≤1500 |
Chlorine content (PPM) | ≤35 | ≤40 | ≤45 | ≤50 |
Tolerance of density (g/cm³) | ±0.05 | ±0.05 | ±0.06 | ±0.07 |
Tolerance of Thickness (mm) | <1±0.03;1-1.5±0.05; >1.5±0.1 | |||
Compressibility (%) | ≥40 (Density 1.0g/cm³) | |||
Recovery (%) | ≥10 (Density 1.0g/cm³) | |||
